Option Explicit
Option Base 0
'

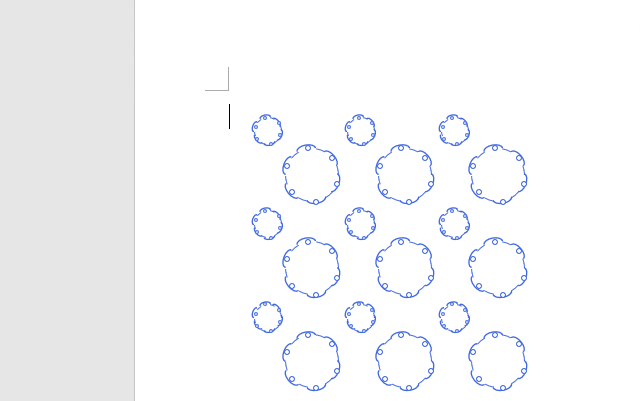

Public Sub 雪輪文様描画マクロ()
Const SNOWLEFT = 90 '描画開始位置X
Const SNOWTOPP = 90 ' Y
'
Const SNOWHZSP = 70 '水平間隔
Const SNOWVTSP = 70 '垂直間隔
'
Const SNOWCOLS = 3 '横 描画数
Const SNOWROWS = 3 '縦 描画数
'
Const SNOWLNWT = 1 '線の太さ
'
Const SNOWSZ1 = 20 '雪輪半径1
Const SNOWSZ2 = 10 '雪輪半径2
Const SNOWGAP = 3 '雪輪の隙間
'
Const SNOWARCA = 40 '円弧描画角
'---------------------------------------------------------------------------
Dim Ip As Integer, Jp As Integer
Dim Kp As Integer, Lp As Integer
Dim intCxp As Integer, intCyp As Integer
Dim intDxp As Integer, intDyp As Integer
Dim intExp(1) As Integer, intEyp(1) As Integer
Dim dblRad As Double, intAgl As Integer
Dim intRdn As Integer, intFrd As Integer
Dim lngCol As Long
'
'
dblRad = (4 * Atn(1)) / 180
lngCol = RGB(65, 105, 225) '←線色
For Jp = 0 To SNOWROWS - 1
intCyp = SNOWTOPP + SNOWHZSP * Jp
For Ip = 0 To SNOWCOLS - 1
intCxp = SNOWLEFT + SNOWVTSP * Ip
For Kp = 1 To 2
intDxp = intCxp _
+ Choose(Kp, SNOWSZ1 + SNOWSZ2 + SNOWGAP, 0)
intDyp = intCyp _
+ Choose(Kp, SNOWSZ1 + SNOWSZ2 + SNOWGAP, 0)
intRdn = Choose(Kp, SNOWSZ1, SNOWSZ2)
intFrd = intRdn * Tan(dblRad * (SNOWARCA / 2))
For Lp = 0 To 5
intAgl = 60 * Lp
intExp(0) = intRdn * Cos(dblRad * intAgl) + intDxp
intEyp(0) = intRdn * Sin(dblRad * intAgl) + intDyp
intExp(1) = intRdn _
* Cos(dblRad * (intAgl + SNOWARCA)) + intDxp
intEyp(1) = intRdn _
* Sin(dblRad * (intAgl + SNOWARCA)) + intDyp
'*円弧1描画
With ActiveDocument.Shapes.AddShape(msoShapeArc, _
(intExp(1) + intExp(0)) / 2 - intFrd, _
(intEyp(1) + intEyp(0)) / 2 - intFrd / 2, _
intFrd * 2, intFrd * 1)
.Fill.Visible = False
.Line.Visible = True
.Line.ForeColor.RGB = lngCol '←線色
.Line.Weight = SNOWLNWT '←線の太さ
.Adjustments(1) = 0
.Adjustments(2) = 180
.Rotation = intAgl - 90 + 20
End With
'*円弧2描画
With ActiveDocument.Shapes.AddShape(msoShapeArc, _
intDxp - intRdn, intDyp - intRdn, _
intRdn * 2, intRdn * 2)
.Fill.Visible = False
.Line.Visible = True
.Line.ForeColor.RGB = lngCol '←線色
.Line.Weight = SNOWLNWT '←線の太さ
.Adjustments(1) = intAgl + SNOWARCA
.Adjustments(2) = intAgl + 60
End With
'*小穴描画
intExp(0) = intRdn _
* Cos(dblRad * (intAgl + SNOWARCA / 2)) + intDxp
intEyp(0) = intRdn _
* Sin(dblRad * (intAgl + SNOWARCA / 2)) + intDyp
With ActiveDocument.Shapes.AddShape(msoShapeOval, _
intExp(0) - intFrd / 4, intEyp(0) - intFrd / 4, _
intFrd / 2, intFrd / 2)
.Fill.Visible = msoTrue
.Fill.ForeColor.RGB = vbWhite
.Line.Visible = msoTrue
.Line.ForeColor.RGB = lngCol '←線色
.Line.Weight = SNOWLNWT '←線の太さ
End With
Next Lp
Next Kp
Next Ip
Next Jp
End Sub
《蛇足》
無骨な形が雪っぽいとは、無能な作者の下手な言い訳!
