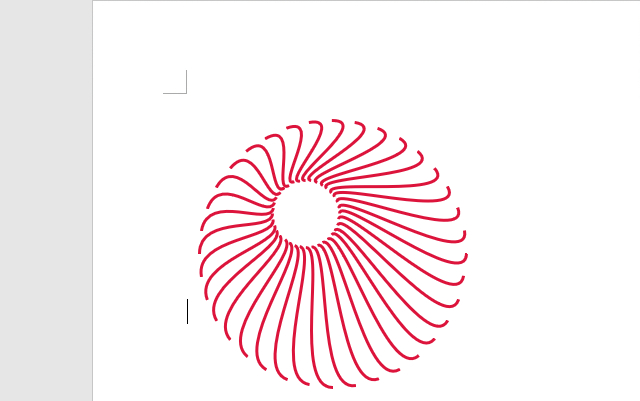

【Word VBA】丸く並べるベジェ曲線描画マクロ▽ソースコード

Option Explicit

Option Base 0

'

Public Sub 丸く並べるベジェ曲線描画マクロ()

    Const CIBZOCXP = 180 　　　'外円の中心位置Ｘ

    Const CIBZOCYP = 190 　　　'　 Ｙ

    Const CIBZICXP = 160　　　  '内円の中心位置Ｘ

    Const CIBZICYP = 160 　　　 '　 Ｙ

    '

    Const CIBZLNCN = 36           '線の数

    Const CIBZORAD = 100        '外円の半径

    Const CIBZIRAD = 25           '内円の半径

    '

    Const CIBZOMIS = 30          'ベジエ曲線ずれ

    Const CIBZIMIS = 15

    '

    Const CIBZLNCL = &H3C14DC    '線の色

    Const CIBZLNWE = 2                 '線の太さ

    '---------------------------------------------------------------------------

    Dim Ip As Integer

    Dim intAng As Integer, sngRdi As Single

    Dim sngSit(2) As Single

    Dim sngBDt(3, 1) As Single

    '

    sngRdi = Atn(1) / 45

    intAng = 360 \ CIBZLNCN

    For Ip = 0 To CIBZLNCN - 1

        sngSit(0) = sngRdi * (intAng * Ip)

        sngSit(1) = sngRdi * (intAng * Ip + 90)

        sngSit(2) = sngRdi * (intAng * Ip - 90)

        '外円点

        sngBDt(0, 0) = CIBZORAD * Cos(sngSit(0)) + CIBZOCXP

        sngBDt(0, 1) = CIBZORAD * Sin(sngSit(0)) + CIBZOCYP

        '内円点

        sngBDt(3, 0) = CIBZIRAD * Cos(sngSit(0)) + CIBZICXP

        sngBDt(3, 1) = CIBZIRAD * Sin(sngSit(0)) + CIBZICYP

        '*ベジェ曲線（中２点）データ

        sngBDt(1, 0) = CIBZOMIS * Cos(sngSit(1)) + sngBDt(0, 0)

        sngBDt(1, 1) = CIBZOMIS * Sin(sngSit(1)) + sngBDt(0, 1)

        sngBDt(2, 0) = CIBZIMIS * Cos(sngSit(2)) + sngBDt(3, 0)

        sngBDt(2, 1) = CIBZIMIS * Sin(sngSit(2)) + sngBDt(3, 1)

        '*ベジェ曲線描画

        With ActiveDocument.Shapes.AddCurve(sngBDt)

             .Fill.Visible = msoFalse

             .Line.Visible = msoTrue

             .Line.ForeColor.RGB = CIBZLNCL

             .Line.Weight = CIBZLNWE

        End With

       '

   Next Ip

End Sub
