Option Explicit
Option Base 0
'

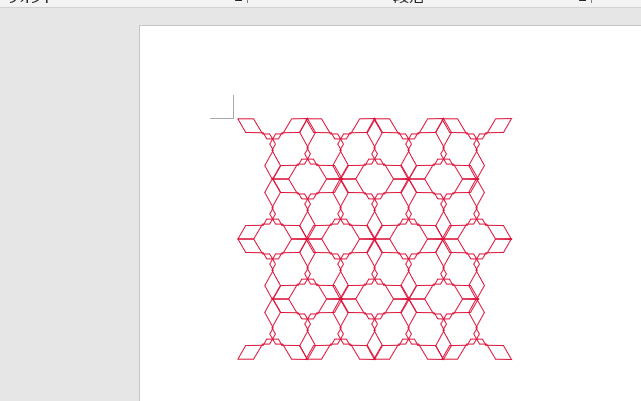

Public Sub ジオメトリー柄描画マクロ()
Const GEOMLEFT = 100 '描画開始位置X
Const GEOMTOPP = 100 ' Y
'
Const GEOMCOLS = 7 '横/描画数
Const GEOMROWS = 4 '縦/描画数
'
Const GEOMPRAT = 0.75 'ポリライン倍率
Const GEOMVPIT = 34 * GEOMPRAT '横/描画間隔
Const GEOMHPIT = 60 * GEOMPRAT '縦/描画間隔
'
Const GEOMLNCL = &H3C14DC '線の色(Crimson)
Const GEOMLNWT = 1 '線の太さ
'---------------------------------------------------------------------------
Dim Ip As Integer, Jp As Integer
Dim Kp As Integer
'
Dim intDxp As Integer, intDyp As Integer
Dim varPoly As Variant, intCnt As Integer
Dim sngPBas() As Single, sngPDat() As Single
Dim sngPTri() As Single
Dim sngRad As Single, sngSit As Single
'
'ポリラインデータ
varPoly = Array(35, -20, 19, -20, 10, -5, 3, -5, 0, 0, -3, _
-5, -10, -5, -19, -20, -35, -20)
'ポリラインデータ数
intCnt = (UBound(varPoly, 1) - 1) \ 2
'
'ポリラインデータ設定
ReDim sngPBas(intCnt, 1)
For Kp = LBound(varPoly, 1) To UBound(varPoly, 1) Step 2
sngPBas(Kp \ 2, 0) = CSng(varPoly(Kp + 0)) * GEOMPRAT
sngPBas(Kp \ 2, 1) = CSng(varPoly(Kp + 1)) * GEOMPRAT
Next Kp
'
'ポリラインデータ設定(三角状にする)
ReDim sngPTri(intCnt * 3, 1)
ReDim sngPDat(intCnt * 3, 1)
sngRad = -60 * ((4 * Atn(1)) / 180)
For Ip = 0 To 2
sngSit = Ip * sngRad
Jp = Choose(Ip + 1, 0, 2, 1)
For Kp = LBound(sngPBas, 1) To UBound(sngPBas, 1)
sngPTri(Jp * intCnt + Kp, 0) = (sngPBas(Kp, 0) * Cos(sngSit) _
- sngPBas(Kp, 1) * Sin(sngSit)) * IIf(Ip = 1, 1, -1)
sngPTri(Jp * intCnt + Kp, 1) = (sngPBas(Kp, 0) * Sin(sngSit) _
+ sngPBas(Kp, 1) * Cos(sngSit)) * IIf(Ip = 1, 1, -1)
Next Kp
Next Ip
'
'*ジオメトリー柄描画
intDxp = GEOMLEFT: intDyp = GEOMTOPP
For Jp = 0 To GEOMROWS - 1
intDyp = GEOMTOPP + GEOMHPIT * Jp
For Ip = 0 To GEOMCOLS - 1
intDxp = GEOMLEFT + GEOMVPIT * Ip
'ポリライン描画位置設定
For Kp = LBound(sngPDat, 1) To UBound(sngPDat, 1)
sngPDat(Kp, 0) = sngPTri(Kp, 0) + intDxp
sngPDat(Kp, 1) = sngPTri(Kp, 1) + intDyp
Next Kp
'*ポリライン描画
With ActiveDocument.Shapes.AddPolyline(sngPDat)
.Fill.Visible = msoFalse
.Line.Visible = msoTrue
.Line.ForeColor = GEOMLNCL '←線色
.Line.Weight = GEOMLNWT '←線の太さ
'△▽△▽△▽△▽・・・
If ((Ip + Jp) Mod 2) = 0 Then
.Flip msoFlipVertical
End If
End With
Next Ip
Next Jp
End Sub
