Option Explicit
Option Base 0
'

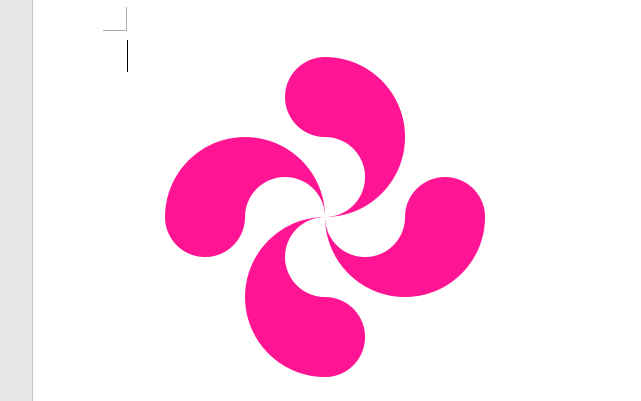

Public Sub 半円組合せ模様描画マクロ()
Const SMCRCTRX = 220 '描画開始位置X
Const SMCRCTRY = 210 ' Y
Const SMCRRADI = 120 '描画半径
'
Const SMCRFICL = &H9314FF '描画色(DeepPink)
'---------------------------------------------------------------------------
Dim Ip As Integer
Dim intSxp(2) As Integer, intSyp(2) As Integer
Dim intSan As Integer
'
'
For Ip = 0 To 3
Select Case Ip
Case 0: intSxp(0) = SMCRCTRX - SMCRRADI / 2
intSyp(0) = SMCRCTRY - SMCRRADI
intSxp(1) = SMCRCTRX - SMCRRADI / 4
intSyp(1) = SMCRCTRY - SMCRRADI
intSxp(2) = SMCRCTRX - SMCRRADI / 4
intSyp(2) = SMCRCTRY - SMCRRADI / 2
intSan = -90
Case 1: intSxp(0) = SMCRCTRX
intSyp(0) = SMCRCTRY - SMCRRADI / 2
intSxp(1) = SMCRCTRX + SMCRRADI / 2
intSyp(1) = SMCRCTRY - SMCRRADI / 4
intSxp(2) = SMCRCTRX
intSan = 0
intSyp(2) = SMCRCTRY - SMCRRADI / 4
Case 2: intSxp(0) = SMCRCTRX - SMCRRADI / 2
intSyp(0) = SMCRCTRY
intSxp(1) = SMCRCTRX - SMCRRADI / 4
intSyp(1) = SMCRCTRY + SMCRRADI / 2
intSxp(2) = SMCRCTRX - SMCRRADI / 4
intSyp(2) = SMCRCTRY
intSan = 90
Case 3: intSxp(0) = SMCRCTRX - SMCRRADI
intSyp(0) = SMCRCTRY - SMCRRADI / 2
intSxp(1) = SMCRCTRX - SMCRRADI / 1
intSyp(1) = SMCRCTRY - SMCRRADI / 4
intSxp(2) = SMCRCTRX - SMCRRADI / 2
intSyp(2) = SMCRCTRY - SMCRRADI / 4
intSan = 180
End Select
'*半円1描画
With ActiveDocument.Shapes.AddShape(msoShapePie, _
intSxp(0), intSyp(0), SMCRRADI, SMCRRADI)
.Fill.Visible = True:
.Fill.ForeColor.RGB = SMCRFICL
.Line.Visible = False
.Adjustments(1) = intSan
.Adjustments(2) = intSan + 180
End With
'*半円2描画(凸)
With ActiveDocument.Shapes.AddShape(msoShapePie, _
intSxp(1), intSyp(1), SMCRRADI / 2, SMCRRADI / 2)
.Fill.Visible = True:
.Fill.ForeColor.RGB = SMCRFICL
.Line.Visible = False
.Adjustments(1) = intSan + 180
.Adjustments(2) = intSan + 360
End With
'*半円3描画(凹)
With ActiveDocument.Shapes.AddShape(msoShapePie, _
intSxp(2), intSyp(2), SMCRRADI / 2, SMCRRADI / 2)
.Fill.Visible = True:
.Fill.ForeColor.RGB = vbWhite
.Line.Visible = False
.Adjustments(1) = intSan
.Adjustments(2) = intSan + 180
End With
Next Ip
End Sub
