Option Explicit
Option Base 0
'

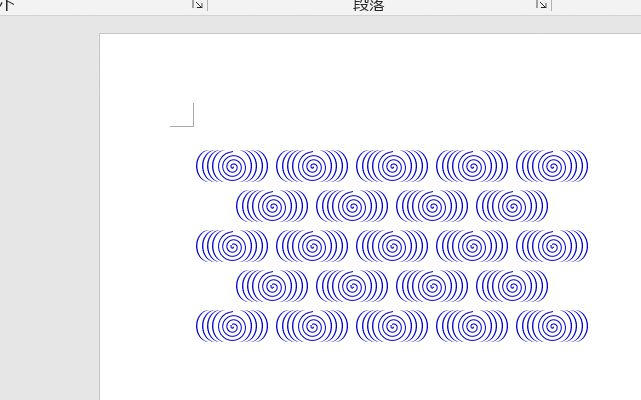

Public Sub 観世水模様描画マクロ()
Const KNZWLEFT = 100 '描画開始位置X
Const KNZWTOPP = 100 ' Y
'
Const KNZWCOLS = 5 '横/描画数
Const KNZWROWS = 5 '縦/描画数
'
Const KNZWSWAN = 30 '渦巻描画刻み角
Const KNZWSWMG = 0.5 '渦巻描画 係数
Const KNZWOCWD = (20 * KNZWSWMG) '円弧幅
Const KNZWOCPT = (8 * KNZWSWMG) '円弧間隔
Const KNZWOCCN = 4 '円弧の数
Const KNZWOCAG = 0.1 '円弧の厚み
Const KNZWOCHT = 1.1 '(円弧/渦巻)の高さ
Const KNZWHSPC = 1.25 '(行/円弧)の高さ
'
Const KNZWLNWE = 0.75 '渦巻線の太さ
'---------------------------------------------------------------------------
Dim Ip As Integer, Jp As Integer
Dim Kp As Integer, Lp As Integer
Dim intDxp As Integer, intDyp As Integer
Dim intDvp As Integer, intDhp As Integer
Dim intExp As Integer, intEyp As Integer
Dim intEHt As Integer, intEPt As Integer
Dim lngCol As Long
Dim sngBFp(45, 1) As Single, sngBFm(1, 1) As Single
Dim sngBRd As Single, sngSit As Single
'
'*渦巻描画データ作成
sngBRd = ((4 * Atn(1)) / 180) * KNZWSWAN
For Kp = LBound(sngBFp, 1) To UBound(sngBFp, 1)
sngSit = sngBRd * Kp
sngBFp(Kp, 0) = sngSit * Cos(sngSit) * KNZWSWMG
sngBFp(Kp, 1) = sngSit * Sin(sngSit) * KNZWSWMG
'サイズ(上下左右)を取得
If Kp = LBound(sngBFp, 1) Then
sngBFm(0, 0) = sngBFp(Kp, 0): sngBFm(0, 1) = sngBFp(Kp, 1)
sngBFm(1, 0) = sngBFp(Kp, 0): sngBFm(1, 1) = sngBFp(Kp, 0)
Else
If sngBFm(1, 0) > sngBFp(Kp, 0) Then _
sngBFm(1, 0) = sngBFp(Kp, 0) '←左
If sngBFm(0, 0) < sngBFp(Kp, 0) Then _
sngBFm(0, 0) = sngBFp(Kp, 0) '←右
If sngBFm(1, 1) > sngBFp(Kp, 1) Then _
sngBFm(1, 1) = sngBFp(Kp, 1) '←上
If sngBFm(0, 1) < sngBFp(Kp, 1) Then _
sngBFm(0, 1) = sngBFp(Kp, 1) '←下
End If
Next Kp
'
lngCol = RGB(0, 0, 205) '←線色
intEHt = (sngBFm(0, 1) - sngBFm(1, 1)) * KNZWOCHT
intDhp = intEHt * KNZWHSPC '←行高
intDvp = (sngBFm(0, 0) - sngBFm(1, 0)) _
+ KNZWOCPT * (KNZWOCCN + 1) * 2 '←桁幅
For Jp = 0 To KNZWROWS - 1
intDyp = KNZWTOPP + intDhp * Jp
For Ip = 0 To KNZWCOLS - IIf((Jp Mod 2) = 0, 1, 2)
intDxp = KNZWLEFT + intDvp * Ip _
+ (intDvp / 2) * (Jp Mod 2)
'*渦巻描画
With ActiveDocument.Shapes.BuildFreeform(msoEditingAuto, _
sngBFp(LBound(sngBFp, 1), 0) + intDxp, _
sngBFp(LBound(sngBFp, 1), 1) + intDyp)
For Kp = LBound(sngBFp, 1) + 1 To UBound(sngBFp, 1)
.AddNodes msoSegmentCurve, msoEditingAuto, _
sngBFp(Kp, 0) + intDxp, sngBFp(Kp, 1) + intDyp
Next Kp
With .ConvertToShape
.Fill.Visible = msoFalse
.Line.Visible = msoTrue
.Line.ForeColor.RGB = lngCol
.Line.Weight = KNZWLNWE
End With
End With
'*左右の円弧(三日月)描画
intEyp = intDyp + sngBFm(1, 1)
For Kp = 1 To KNZWOCCN
intEPt = KNZWOCPT * Kp
For Lp = 0 To 1
intExp = intDxp + _
IIf(Lp = 0, sngBFm(1, 0) - intEPt, _
sngBFm(0, 0) - KNZWOCWD + intEPt + KNZWOCPT / 2)
With ActiveDocument.Shapes.AddShape( _
msoShapeMoon, intExp, intEyp, _
KNZWOCWD, intEHt)
.Fill.Visible = msoTrue
.Fill.ForeColor.RGB = lngCol
.Line.Visible = msoFalse
.Adjustments(1) = KNZWOCAG
If Lp = 1 Then .Flip msoFlipHorizontal
End With
Next Lp
Next Kp
Next Ip
Next Jp
End Sub
