Option Explicit
Option Base 0
'

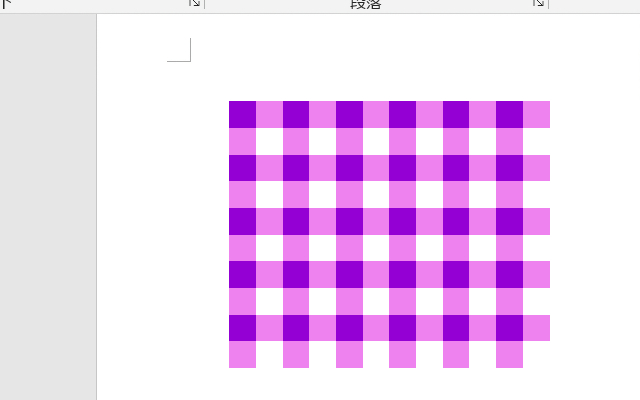

Public Sub エプロンチェック描画マクロ()
Const APROLEFT = 100 '描画開始位置X
Const APROTOPP = 100 ' Y
'
Const APROHWID = 20 '横ライン幅
Const APROVWID = 20 '縦ライン幅
Const APROHGAP = 20 '横間隔
Const APROVGAP = 20 '縦間隔
'
Const APROCOLS = 6 '横描画数
Const APROROWS = 5 '縦描画数
'---------------------------------------------------------------------------
Dim Ip As Integer, Jp As Integer
Dim Kp As Integer
Dim intDxp As Integer, intDyp As Integer
Dim lngCol(2) As Long
'
lngCol(0) = vbWhite '←塗りつぶしなし
lngCol(1) = RGB(238, 130, 238) '←塗りつぶし1
lngCol(2) = RGB(148, 0, 211) '←塗りつぶし2
For Jp = 0 To APROROWS - 1
intDyp = APROTOPP + (APROHWID + APROHGAP) * Jp
For Ip = 0 To APROCOLS - 1
intDxp = APROLEFT + (APROVWID + APROVGAP) * Ip
'
For Kp = 0 To 3 'K= 0 | 1
' -----+----
'*矩形描画 2 | 3
With ActiveDocument.Shapes.AddShape( _
msoShapeRectangle, _
intDxp + APROVWID * (Kp Mod 2), _
intDyp + APROHWID * (Kp \ 2), _
IIf((Kp Mod 2) = 0, APROVWID, APROVGAP), _
IIf((Kp \ 2) = 0, APROHWID, APROHGAP))
.Fill.Visible = True
.Fill.ForeColor.RGB = _
Choose(Kp + 1, lngCol(2), lngCol(1), _
lngCol(1), lngCol(0))
.Line.Visible = False
End With
Next Kp
Next Ip
Next Jp
End Sub
