Option Explicit
Option Base 0

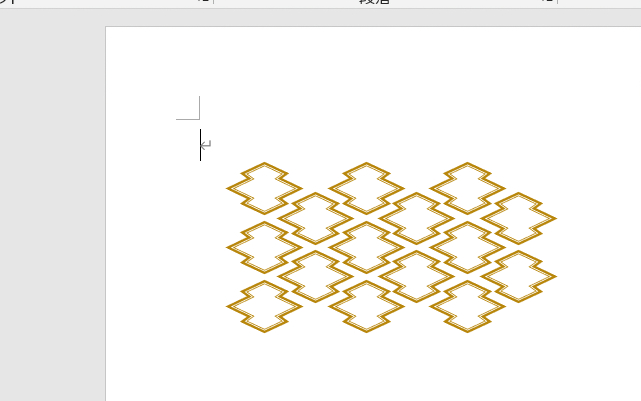

Public Sub 松皮菱文様描画マクロ()
Const PIBALEFT = 120 '描画開始位置X
Const PIBATOPP = 100 ' Y
'
Const PIBASIZE = 1# 'ポリライン設定倍率
'
Const PIBACOLS = 3 '横描画数
Const PIBAROWS = 5 '縦描画数
'
Const PIBAWDSP = 24 '横方向間隔
Const PIBAHTSP = 4 '縦方向間隔
'
Const PIBALNWE = 3 '線の太さ
'---------------------------------------------------------------------------
Dim Ip As Integer, Jp As Integer, Kp As Integer
Dim intCxp As Integer, intCyp As Integer
Dim intCwd As Integer, intCht As Integer
Dim varPoly As Variant
Dim sngPBas() As Single, sngPDat() As Single
Dim sngLmt(3) As Single, lngCol As Long
'
'*ポリラインデータ
varPoly = Array(-26#, 0#, -10.4, -7.4, -15.6, -11.1, 0#, -18.3, _
0#, -18.3, _
15.6, -11.1, 10.4, -7.4, 26#, 0#, 26#, 0#, 10.4, 7.4, 15.6, 11.1, _
0#, 18.3, _
0#, 18.3, -15.6, 11.1, -10.4, 7.4, -26#, 0#)
'*ポリラインデータ設定
ReDim sngPBas((UBound(varPoly, 1) - 1) \ 2, 1)
ReDim sngPDat((UBound(varPoly, 1) - 1) \ 2, 1)
sngLmt(0) = 9999: sngLmt(1) = 9999:
sngLmt(2) = -9999: sngLmt(3) = -9999
For Ip = LBound(varPoly, 1) To UBound(varPoly, 1) Step 2
sngPBas(Ip \ 2, 0) = CSng(varPoly(Ip + 0)) * PIBASIZE
sngPBas(Ip \ 2, 1) = CSng(varPoly(Ip + 1)) * PIBASIZE
'ポリラインデータ範囲取得
If sngLmt(0) > sngPBas(Ip \ 2, 0) Then _
sngLmt(0) = sngPBas(Ip \ 2, 0)
If sngLmt(1) > sngPBas(Ip \ 2, 1) Then _
sngLmt(1) = sngPBas(Ip \ 2, 1)
If sngLmt(2) < sngPBas(Ip \ 2, 0) Then _
sngLmt(2) = sngPBas(Ip \ 2, 0)
If sngLmt(3) < sngPBas(Ip \ 2, 1) Then _
sngLmt(3) = sngPBas(Ip \ 2, 1)
Next Ip
'
lngCol = RGB(184, 134, 11) '←線色
intCwd = (sngLmt(2) - sngLmt(0)) + PIBAWDSP
intCht = (sngLmt(3) - sngLmt(1)) / 2 + PIBAHTSP
For Jp = 0 To PIBAROWS - 1
intCyp = PIBATOPP + intCht * (Jp + 1)
For Ip = 0 To PIBACOLS - 1
intCxp = PIBALEFT + intCwd * Ip + (intCwd / 2) * (Jp Mod 2)
For Kp = LBound(sngPBas, 1) To UBound(sngPBas, 1)
sngPDat(Kp, 0) = sngPBas(Kp, 0) + intCxp
sngPDat(Kp, 1) = sngPBas(Kp, 1) + intCyp
Next Kp
'*ポリライン描画
With ActiveDocument.Shapes.AddPolyline(sngPDat)
.Fill.Visible = msoFalse
.Line.Visible = msoTrue
.Line.ForeColor = lngCol '←線色
.Line.Weight = PIBALNWE '←線の太さ
.Line.Style = msoLineThickThin '←二重線
End With
Next Ip
Next Jp
End Sub
