Option Explicit
Option Base 0

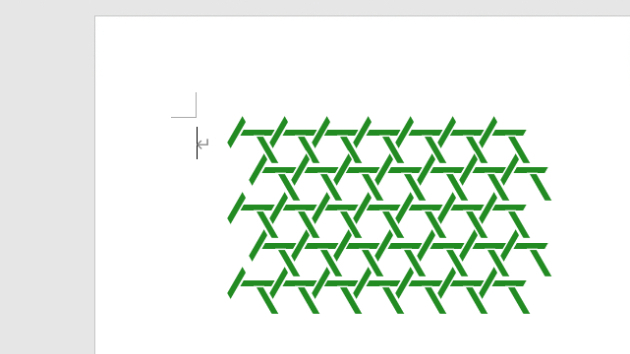

Public Sub 籠目文様描画マクロ()
Const RETILEFT = 100 '描画開始位置X
Const RETITOPP = 80 ' Y
Const RETIWIDT = 25 '平行四辺形幅
Const RETIHEIG = 5 ' 高さ
Const RETICOLS = 7 '横並び数
Const RETIROWS = 5 '縦並び数
'---------------------------------------------------------------------------
Dim Ip As Integer, Jp As Integer, Kp As Integer
Dim dblRd As Double
Dim intDxp As Integer, intDyp As Integer
Dim intDai As Integer, lngCol As Long
'
dblRd = (4 * Atn(1)) / 180
'
lngCol = RGB(34, 139, 34) '←塗りつぶし色(緑)
intDai = CInt(RETIWIDT / Sqr(3)) '←対角線長さ
For Jp = 0 To RETIROWS - 1
intDyp = RETITOPP + _
(RETIWIDT + RETIHEIG) * Sin(60 * dblRd) * Jp - 2
intDxp = RETILEFT + _
IIf((Jp Mod 2) = 0, 0, 1) * ((RETIWIDT + RETIHEIG) / 2)
For Ip = 0 To RETICOLS - 1
For Kp = 1 To 3 '←1:'-' 2:'/' 3'\'
With ActiveDocument.Shapes.AddShape(msoShapeParallelogram, _
Choose(Kp, intDxp, intDxp - intDai, _
intDxp + intDai / 2), _
Choose(Kp, intDyp, intDyp, _
intDyp + RETIHEIG + intDai / 2), _
RETIWIDT, RETIHEIG)
.Fill.Visible = msoTrue '←塗りつぶし
.Fill.ForeColor.RGB = lngCol
.Line.Visible = msoTrue '←線
.Line.ForeColor.RGB = vbWhite '←隙間にする。
.Line.Weight = 1
'
.Rotation = Choose(Kp, 0, -60, 60)
.Adjustments(1) = 1 / Sqr(3)
End With
Next Kp
intDxp = intDxp + RETIWIDT + CInt(RETIHEIG / Sqr(3)) + 1
Next Ip
Next Jp
End Sub
